WoodMaster Upgraded Replacement Limit Control 190 Degrees Cutout 150

Product Description

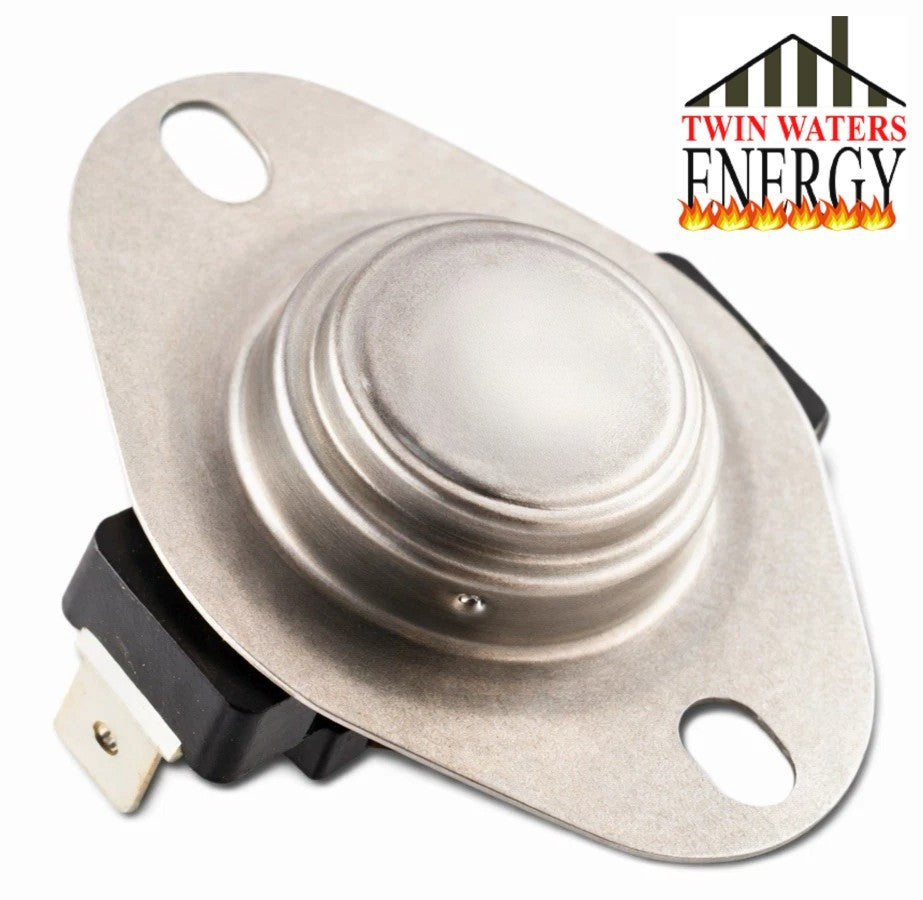

WoodMaster 3/4" snap disc limit control designed to regulate fans, blowers, or serve as a high-limit safety control in heating systems.

Here is a breakdown of its key specifications and features:

Technical Specifications

• Cut-Out Temperature: 190°F (The temperature at which the switch opens and breaks the electrical circuit)

• Cut-In Temperature: 150°F (The temperature at which the switch closes and restores the circuit)

• Switch Action: Open on Rise (Opens the circuit when temperature increases to 190°F)

• Reset Type: Automatic

Electrical Ratings

• Motor Full Load: * 10A @ 120VAC

  • 5A @ 240VAC

• Pilot Duty: 125 VA @ 120 / 240 / 277 VAC

Key Features

• Mounting: Features 1/4" loose ring, stainless steel mounting brackets for flexible installation.

• Terminations: 1/4" quick-connect terminals for fast wiring.

• Construction: Durable aluminum disc cup enclosing the bimetal snap disc.

• Application: Fixed-temperature control typically used in furnaces, wood stoves, and hydronic heating applications to prevent overheating or control blower cycles.
