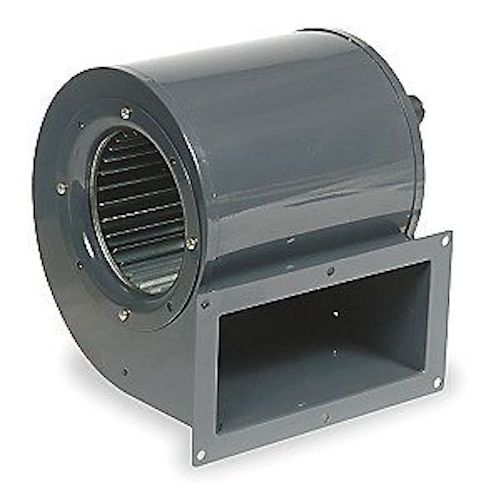

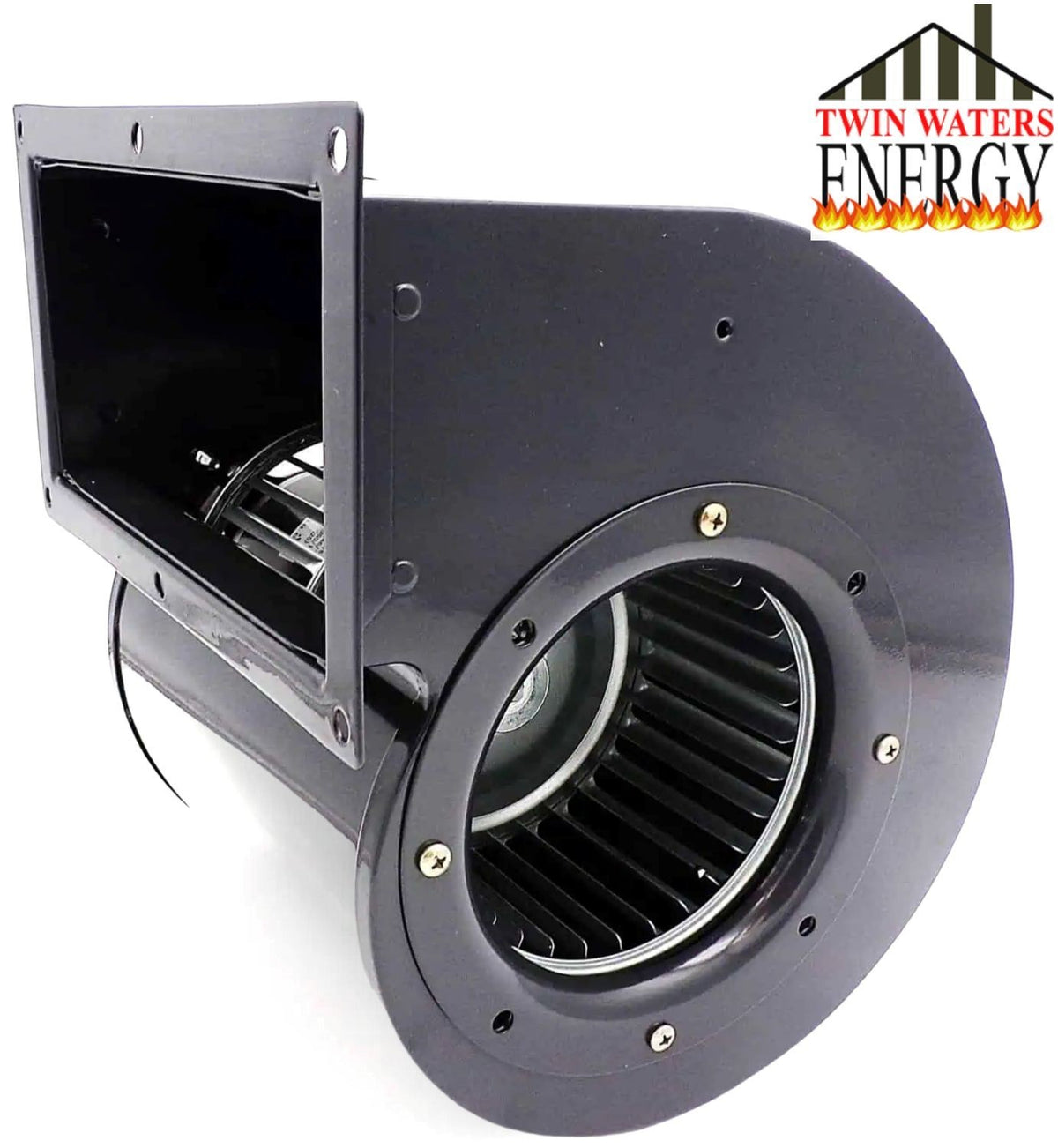

Taylor T-2000 and T-3000 Draft Blower 465 CFM ( #20520)

Product Description

Compatible Taylor T-2000 and T-3000 Shaded Pole Blower, Air Flow @ 0.000 Inch Static Pressure 465 CFM, RPM 1600 For a diagram for the dimensions below please click to pictures 2 and 3 above. Wheel Dia. (In.)5-1/8 Wheel Width (In.)7 Inlet Dia. (In.)4-9/16 Outlet Height (In.)3-1/2 Outlet Width (In.)7-13/16 Overall Height (In.)9-3/8 Overall Width (In.)9-3/16 Overall Depth (In.)8-9/16 Dimension A (In.)8-9/16 Dimension B (In.)10-1/2 Dimension C (In.)9-3/16 Dimension D (In.)8-3/16 Dimension E (In.)9-3/8 Dimension F (In.)3-5/16 Dimension J (In.)9-7/16 Dimension K (In.)5 Dimension L (In.)8-13/16 Dimension M (In.)4-3/8
