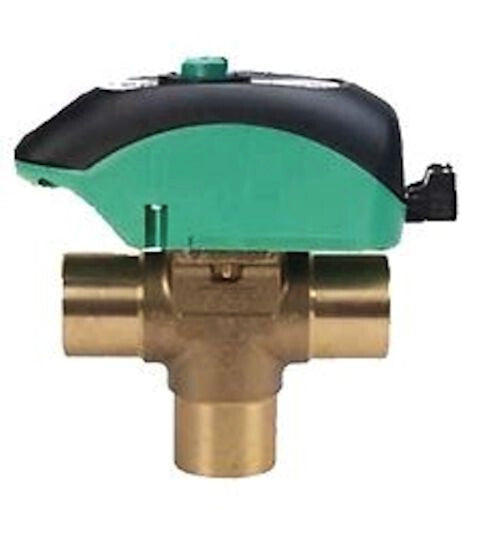

TACO Z075C3-2 Valve, 3 Way, Closed System, 3/4" Sweat (#5800030)

Product Description

Motorized Zone Valve, Three Way, Closed System, Height (In.) 5-1/8, Width (In.) 5-5/16, Depth (In.) 2-3/8, Coefficient of Volume 4.5, Safe Working Water PSI 300, Max. Water Temp. (Deg. F) 240, Voltage 24, Electrical Connections 2-Pin Screw Connectors for Power and End Switch, For Use With Closed Systems, Connection Type/Size (In.) Sweat 3/4
This Taco(R) Zone Sentry valve is designed for a variety of applications including 15 psi geothermal steam, heating systems, or in chilled water where condensation is present. The ball valve installs in any orientation, and the actuator can be replaced in seconds. The snap-in quick connects on the back of the valve allow for and easy and secure wiring hook-up. The green LED shows full functionality of the valve's operation and thermostat status. During a no power situation the manual override button located on the top of the valve allows the ball to be rotated up to 90 Degrees and is also marked with a slot to indicate the position of the valve
