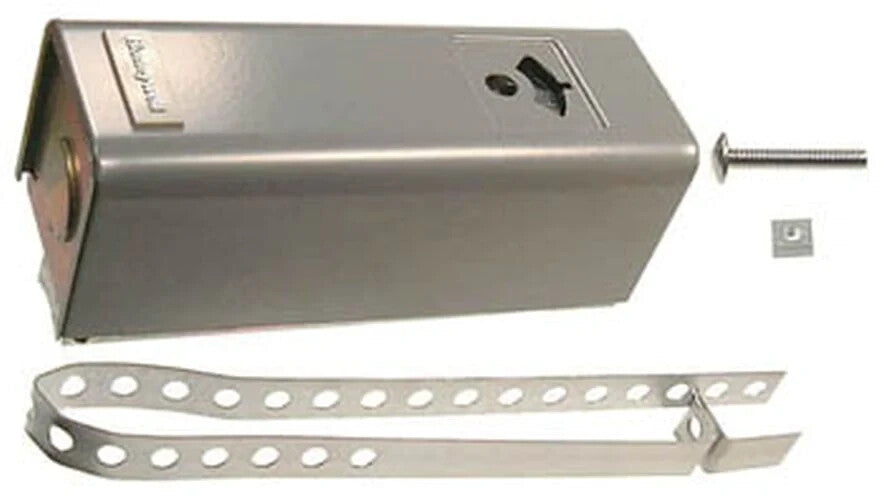

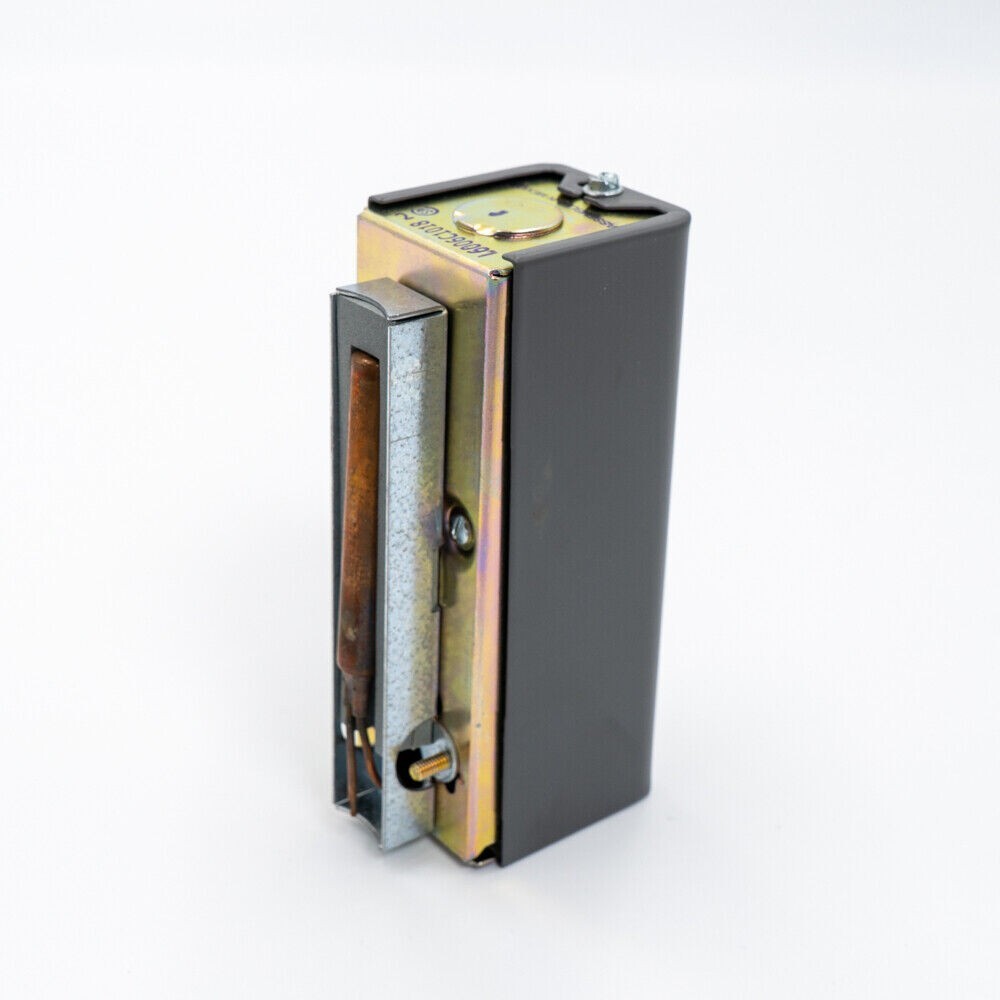

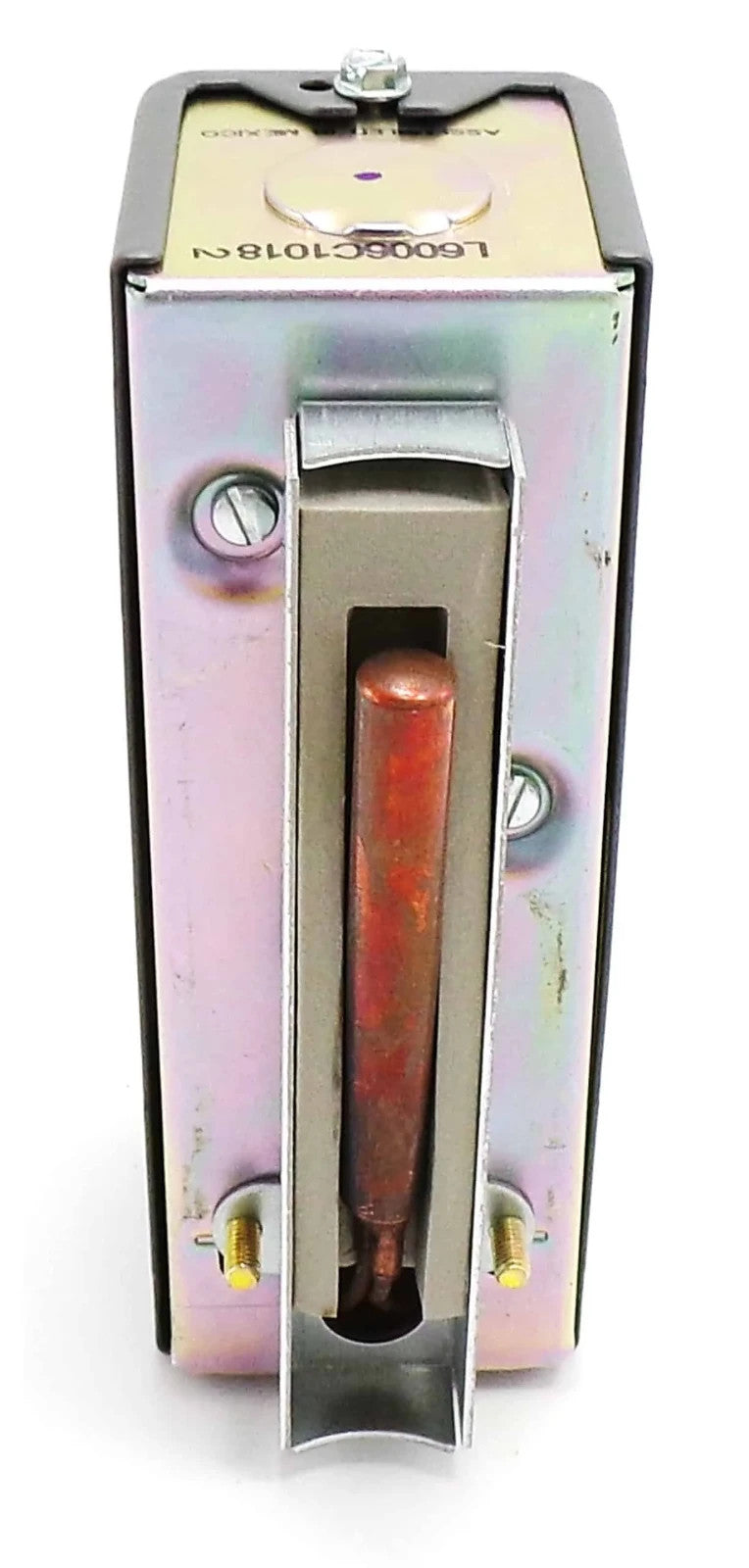

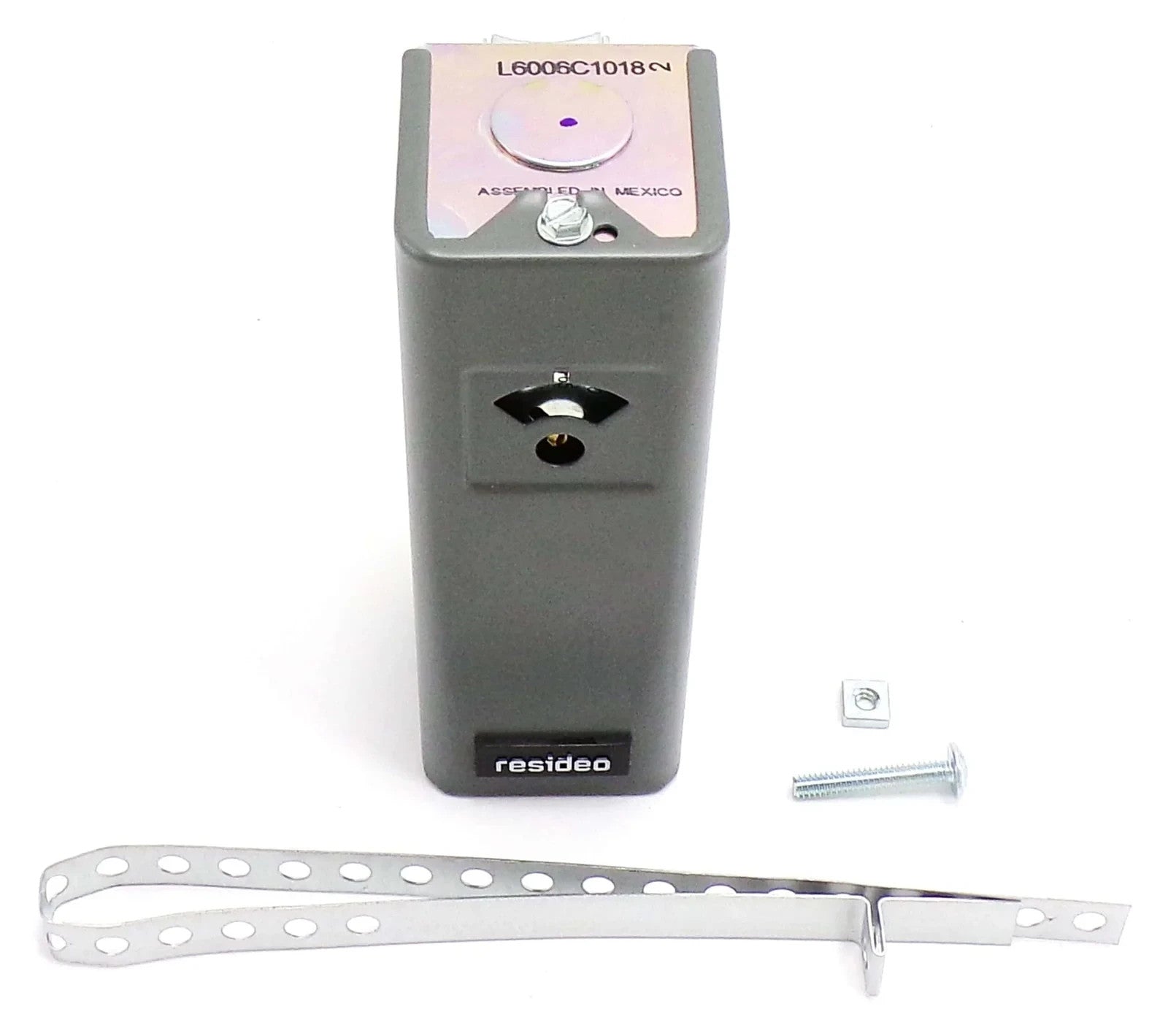

Strap On Aquastat For Outdoor Wood Boiler Honeywell / White Rogers (#0020-377)

Product Description

Features:

• Electrical ratings: Full load 9.8A PLUS 360VA, Ignition 250 VA pilot duty
• Single-pole double-throw switching
• Range of 65 to 200 degrees Fahrenheit with 5- to 30-degree differential
• Brackets for horizontal or vertical mounting
• Application: Strap-On, Low Limit, High Limit, Circulator Control
• Switch Action: SPDT
• Temperature Range (F): 65°F to 200°F
• Electrical Rating: 0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac, 5.1A @ 240 Vac
• Electrical Ratings (ALR): 30.6A @ 240 Vac, 48A @ 120 Vac
• Differential: 5° to 30°F
• Max Temp Differential: 30°F
• Min Temp Differential: 5°F
• Differential: Adjustable
• Height: 5-5/8″
• Width: 2″
• Depth (Inches): 2-1/8″
• Max Ambient Temp (°F): 150°F
• Well Included: No
• Mount: Horizontal, Vertical, Strap-On
