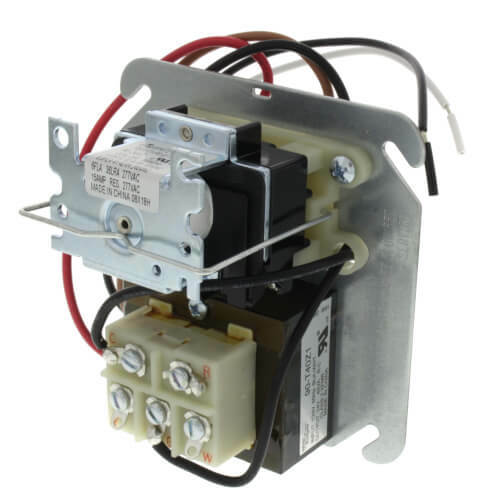

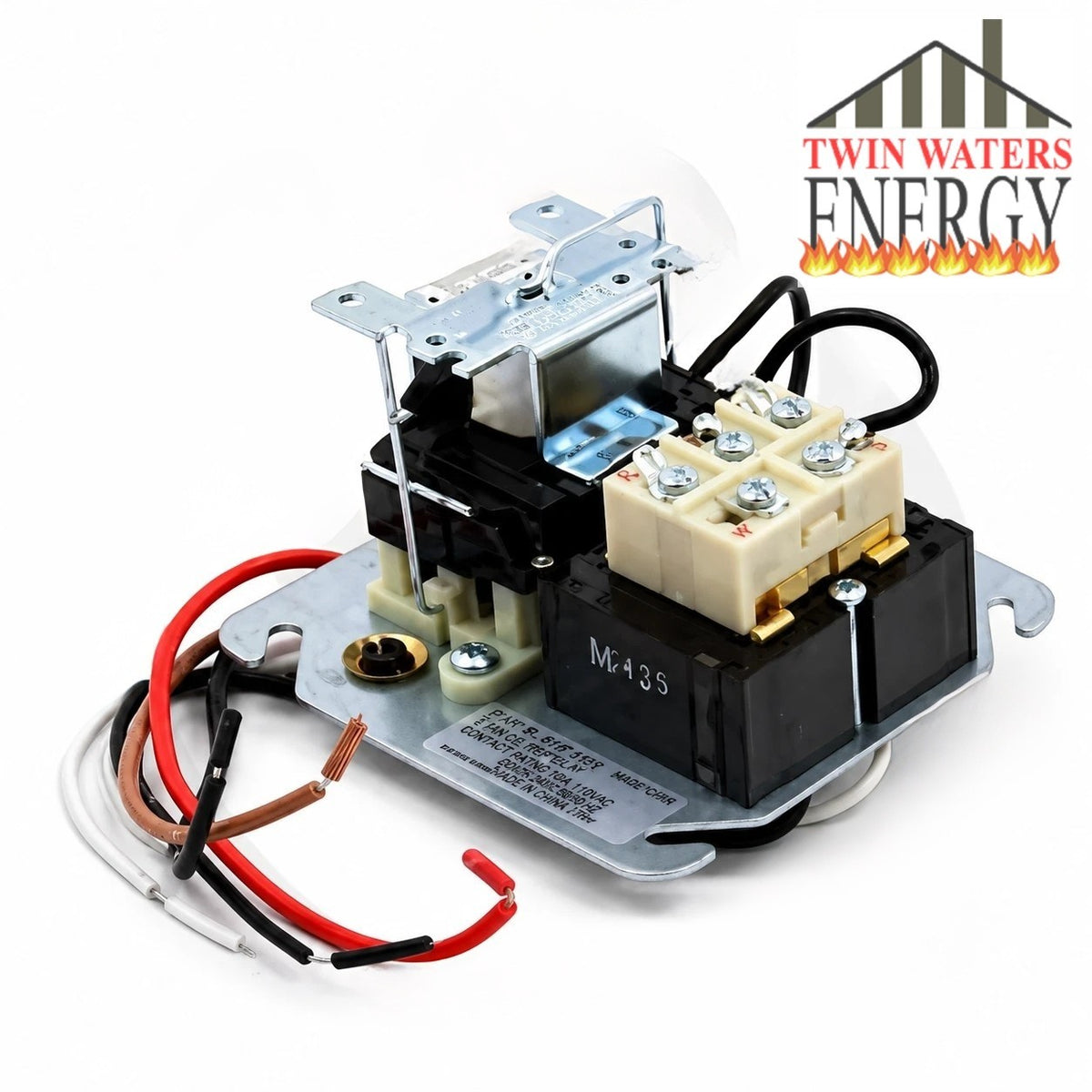

Royall Fan/Pump Control Center #515

Product Description

Replacement draft fan control center for all Royall Furnace systems

For the following systems:
• 8095 Indoor Wood Furnace
• 8130 Indoor Wood Furnace
• 8150 Indoor Wood Furnace


Specifications:
• Type: 4X4 Junction Box Mount
• Coil Volts: 24
• Transformer Primary (V): 120
• Transformer Secondary (V): 24
• Switch Type: SPDT
• HP: 3/4
• Full Load Amps @ 120V: 13.8
• Locked Rotor Amps @ 120V: 82.8
• Full Load Amps @ 208V: 6.9
• Locked Rotor Amps @ 208V: 41.4
• Full Load Amps @ 240VAC: 6.9
• Height (In.): 1
• Width (In.): 4
• Depth (In.): 4
• Mounting: 4 x 4" Junction Box
• Agency Compliance: UL
• Includes Transformer and Relay
