$83.04
Product Description

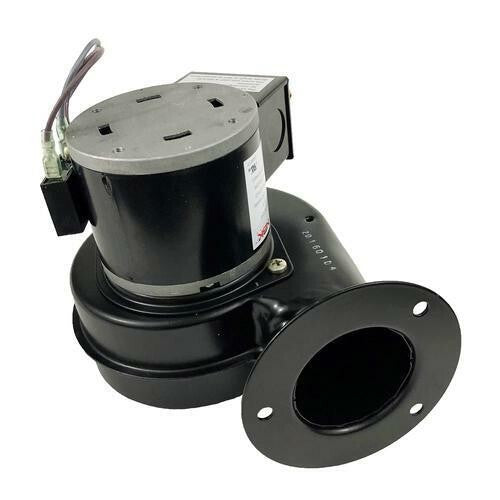

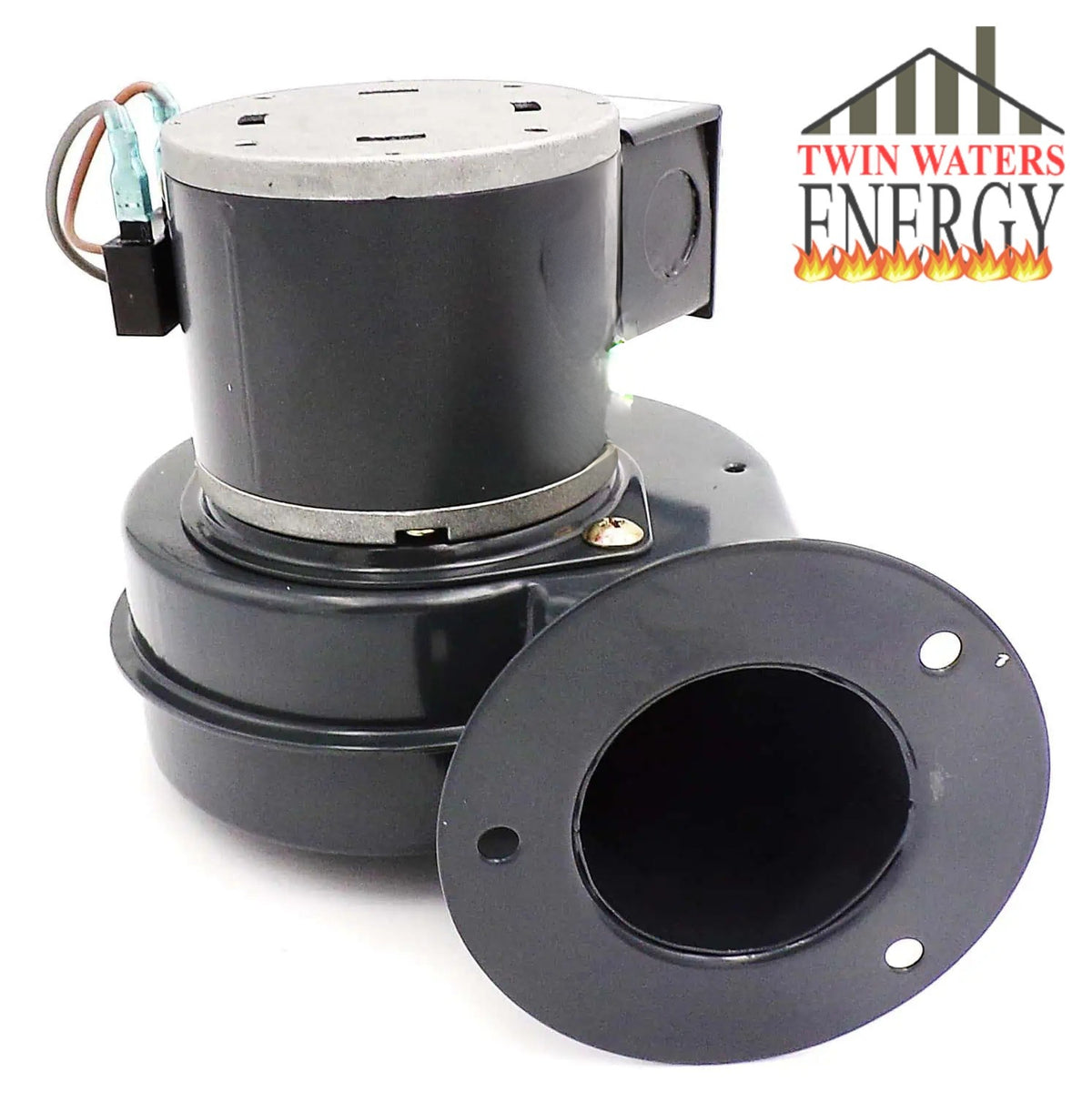

| Item | PSC Blower | |
| Wheel Dia. (In.) | 3 | |
| Wheel Width (In.) | 1-7/8 | |
| CFM @ 0.000-In. SP | 50 | |
| CFM @ 0.100-In. SP | 48 | |
| CFM @ 0.200-In. SP | 44 | |
| CFM @ 0.300-In. SP | 39 | |
| CFM @ 0.400-In. SP | 32 | |
| CFM @ 0.500-In. SP | 18 | |
| Voltage | 115 | |
| Hz | 50/60 | |
| Phase | Single | |
| Full Load Amps | 0.23 | |
| RPM | 3036 | |
| Bearing Type | Ball | |
| Motor Type | Permanent Split Capacitor | |
| Motor Enclosure | Open | |
| Motor Insulation | Class B | |
| Thermal Protection | Auto | |
| Lead Length (In.) | 13 | |
| Conduit Box | Yes | |
| Ambient Temp. (Deg. F) | 104 | |
| Max. Inlet Temp. (Deg. F) | 104 | |
| Inlet Dia. (In.) | 2-3/8 | |
| Outlet Dia. (In.) | 2-1/8 | |
| Overall Height (In.) | 5-13/16 | |
| Overall Width (In.) | 5-1/8 | |
| Overall Depth (In.) | 6-7/16 | |
| Wheel Type | Forward Curve | |
| Drive Type | Direct | |
| Mounting | All Position | |
| Housing Finish | Gray Enamel | |
| Housing Material | Rolled Steel | |
| Agency Compliance | UL Recognized US and Canada (E47479), CE | |
| Replaces | 4C440 |
