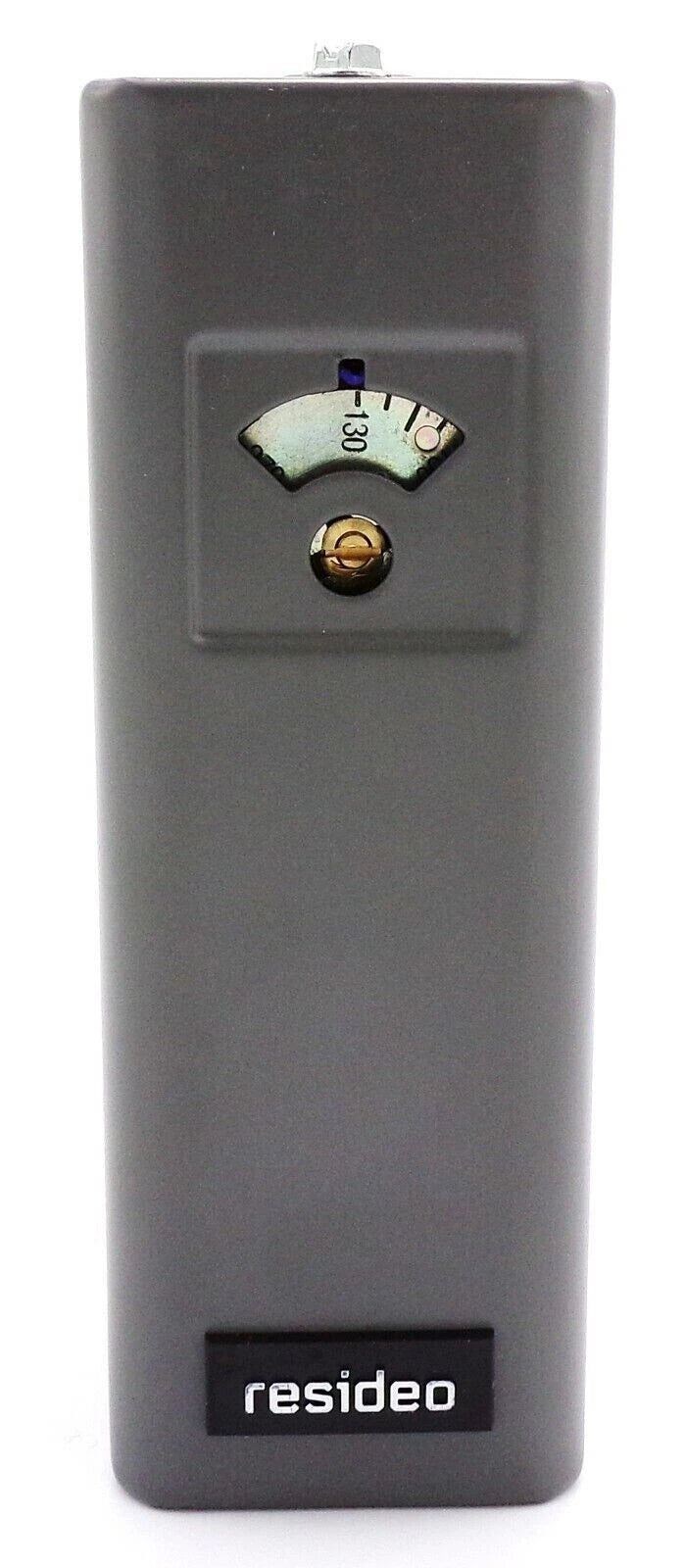

Honeywell Resideo L6006A1160
This immersion type Resideo aquastat is used in several applications such as Outdoor Wood Furnaces (example; when you need to measure the temperature of water in the pipe to trigger either a pump or zone valve) or your indoor gas furnace. This unit temperature range is from 130-265 degrees and the differential of the temperature is adjustable from 5-30 degrees F.
OEM names and Numbers used for reference only.
Aquastat Well not included
FEATURES
120 VAC
Open On Rise
100°F To 240°F range
5°F To 45°F Adjustable Differential
Vertical Or Horizontal Mounting
Competitive Sized Bulb Less Well
Extra capillary length for extended shank wells.
Special screw terminals with “ears” securely hold solid and stranded wires.
Screwdriver-adjustable differential with direct-read indicator.
Knockouts on top and bottom and plenty of wiring room.
Hydraulic action element fast acting.
|
