Product Description

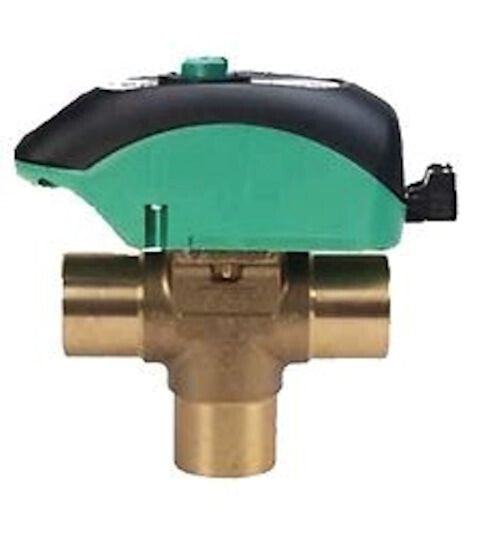

Motorized
Zone Valve, Three Way, Closed System, Height (In.) 5-1/8, Width (In.)
5-5/16, Depth (In.) 2-3/8, Coefficient of Volume 4.5, Safe Working Water
PSI 300, Max. Water Temp. (Deg. F) 240, Voltage 24, Electrical
Connections 2-Pin Screw Connectors for Power and End Switch, For Use
With Closed Systems, Connection Type/Size (In.) Sweat 3/4
This
Taco(R) Zone Sentry valve is designed for a variety of applications
including 15 psi geothermal steam, heating systems, or in chilled water
where condensation is present. The ball valve installs in any
orientation, and the actuator can be replaced in seconds. The snap-in
quick connects on the back of the valve allow for and easy and secure
wiring hook-up. The green LED shows full functionality of the valve's
operation and thermostat status. During a no power situation the manual
override button located on the top of the valve allows the ball to be
rotated up to 90 Degrees and is also marked with a slot to indicate the
position of the valve |
