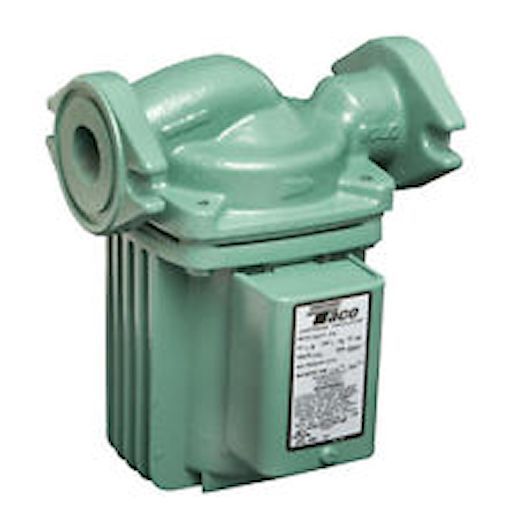

Central Boiler Taco 0014-HBF1-J Circulator Pump Outdoor Wood Boiler #5800008

Product Description

Model 0014 Cartridge Circulator Product Water Circulation Pumps & Circulators Wet Rotor Circulators "00" Cartridge Circulators Performance Data Flow Range: 0-32 GPM Head Range: 0-22 Feet Minimum Fluid Temperature: 40 F (4 C)Maximum Fluid Temperature: 230 F (110 C) Maximum Working Pressure: 125 PSI Connection Sizes: 3/4, 1, 1-1/4, 1-1/2 Flanged The Taco High Velocity Series 0014 Cartridge Circulator is specifically designed for medium-head/medium-flow applications in large residential/light commercial systems. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. Available in cast iron or stainless steel construction. Stainless steel should be used on open-loop systems. Unique, 00 family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0014 to easily replace other models. Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs.Features Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow Protects motor windings against condensate buildup. High Velocity Performance Compact Design Quiet, Efficient Operation Unique Replaceable Cartridge Design Field Serviceable Direct Drive-Low Power Consumption Self-Lubricating No Mechanical Seal Unmatched Reliability --Maintenance Free Universal Flange-to-Flange Dimensions Cast Iron or Stainless Steel Construction Typical Applications Large BTU H Boilers Primary/Secondary Loops Commercial Water Heaters Light Commercial Heating and Cooling Systems
