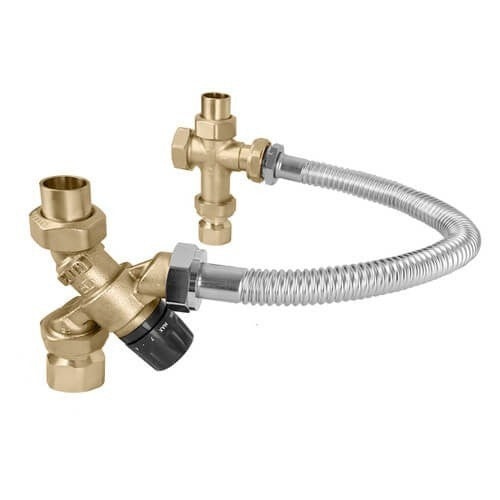

Caleffi TankMixer 3Way Mixing Valve 3/4 FNPT, 18" Flex Hose, Cross #520500AX

The Caleffi 520500AX is a three-way mixing valve designed for water heater systems. This valve features a three-quarter FNPT inlet and three-quarter MNPT outlet. It includes an eighteen-inch flexible hose, providing convenience in installation. The temperature adjustment range is between ninety-five degrees and one hundred fifty degrees Fahrenheit, allowing for precise control.

• Three-quarter FNPT inlet and three-quarter MNPT outlet
• Includes eighteen-inch flexible hose
• Temperature adjustment range between ninety-five and one hundred fifty degrees Fahrenheit

Product Highlights

This mixing valve is essential for optimizing water heating systems, enhancing efficiency, and ensuring safety.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 520500AX
• UPC: 8016615576207

Technical Specifications

• Size: 3/4 inches
• Connection Type: FIP
• Max Inlet Temperature: 195 degrees Fahrenheit
• Max Working Pressure (Static): 150 psi
• Max Working Pressure (Dynamic): 75 psi
• Minimum Flow for Optimum Performance: 0.5 gpm
• Flow Capacity (Cv): 3
• Application: Point of Source
