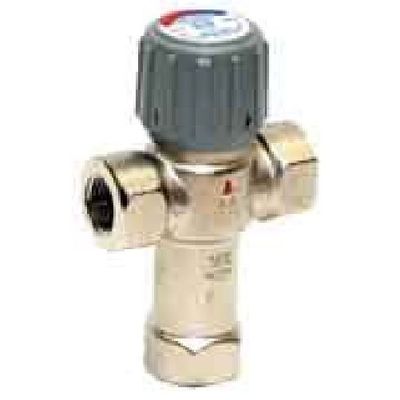

| Thermostatic Mixing Valves AM-1 Series The AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing one of these unique valves, and raising water heater storage temperature, and limiting mixed outlet water temperature to safe temperature, more usable hot water will be available. In heating applications, the valves will provide comfort and will protect the equipment. Features and benefits: Dual purpose mixing or diverting valvesConstant water temperature under changing operating conditionsReliable performance at minimum flow of 0.5 gpmSimultaneous control of hot and cold waterFlow reduction in seconds if cold water supply is interruptedNickel-plated brass constructionDesigned for easy maintenance and element replacementValve trapping not requiredUnion and C models include check valves (hot/cold ports)Maximum pressure = 150 psiMaximum temperature = 212 F.ASSE 1017 approved Typical applications: Heat pump systems, domestic water, nursing homes, public facilities, automatic faucets, radiant floor heating, space heating, combo systems, solar hot water, greenhouses, industrial applications and photo processing. TO BE USED FOR RADIANT, NOT DOMESTIC WATER. |
