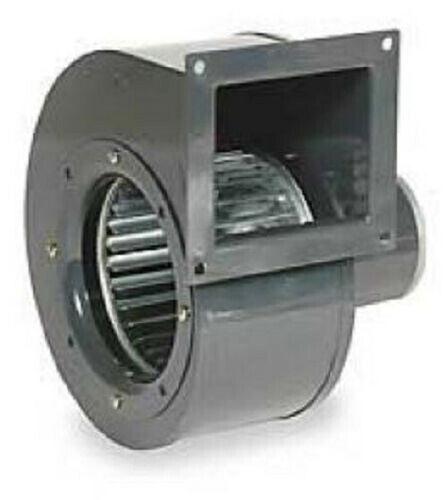

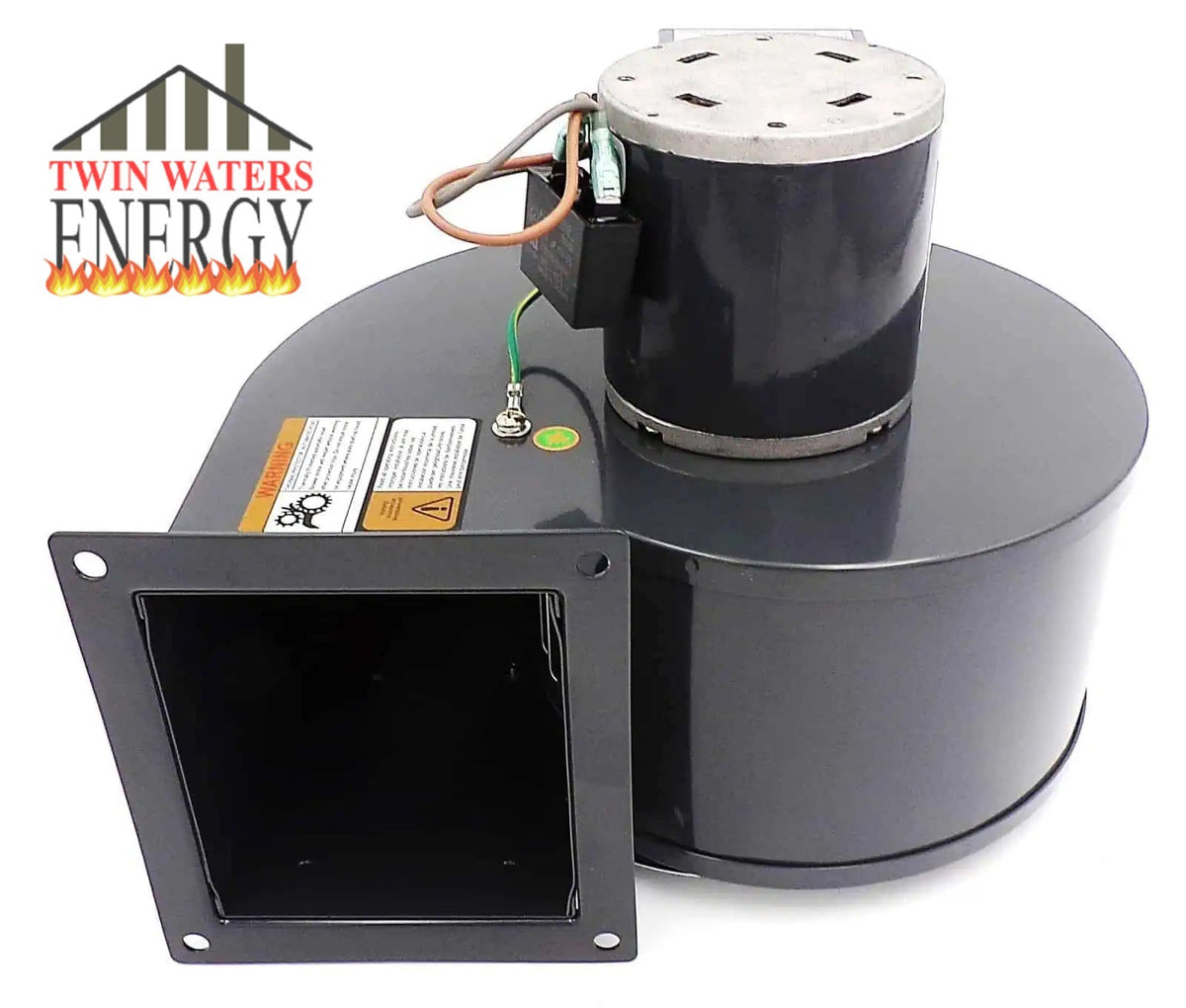

OEM Blower, Blower Outlet Shape Rectangular, Blower Wheel Diameter 5-1/8"
- Blower Outlet Shape: Rectangular
- Blower Wheel Diameter: 5-1/8"
- Blower Wheel Width: 3 11/32"
- 115V AC
- Permanent Split Capacitor
- 50/60 Hz
- .77 AMPs
- 1640 RPM
- Ball Bearing
- Inlet Dia. 4-5/8"
- Outlet Height: 3-5/8"
- Outlet Width 4-1/8"
- Overall Height: 9-7/8"
- Overall Width: 7-11/16"
- Overall Depth: 8-7/8"
- Replaces: 4C447
- Dimension A: 8-7/8"
- Dimension B: 10-7/16"
- Dimension C: 7-11/16"
- Dimension D: 4-1/4"
- Dimension E: 9-7/8"
- Dimension F: 3-5/16"
- Dimension J: 5-1/2"
- Dimension K: 5"
- Dimension L: 4-7/8"
- Dimension M: 4-3/8"
Replacement Blower for Older Style Classic RS Series Crown Royal Stoves Rectangular Flange Size: 5-1/2" x 5" |
