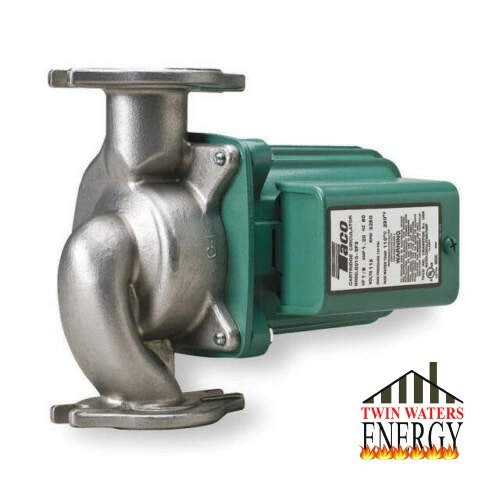

Taco 008SF6 115V 1/25hp Stainless Circulator Pump For Wood Boilers (#508.50)

Product Description

The Taco Model 008 Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head heat recovery, water source heat pumps, open-loop solar heat and domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive, low-power consumption design is ideal for high efficiency jobs. Performance Data Flow Range: 0-14 GPM Head Range: 0-16 Feet Minimum Fluid Temperature: 40 degrees F (4 degrees C) Maximum Fluid Temperature: 230 degrees F (110 degrees C) Maximum Working Pressure: 125 PSI Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged, 3/4" Sweat Features Standard High Capacity Output-Compact Design Quiet, Efficient Operation Unique Replaceable Cartridge Design-Field Serviceable Direct Drive-Low Power Consumption Self-Lubricating No Mechanical Seal Unmatched Reliability --Maintenance Free Universal Flange-to-Flange Dimensions Optional Sweat Connections Typical Applications Hydronic Heating Radiant In-Floor/Panel Heating Closed-Loop Solar Heating Systems Replacement Parts List: Casing O-Ring: 008-005RP Flange Gasket Set: 007-007RP Capacitor or PC Board: 007-002RP Cartridge Assembly Complete: 008-045RP
